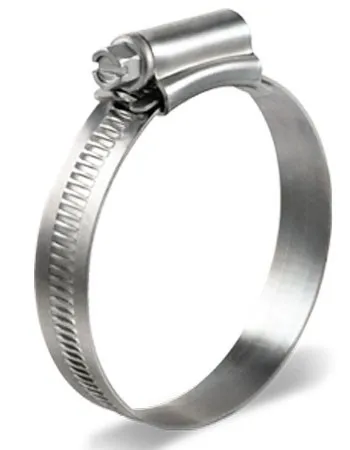

German type embossed worm gear hose clamp
❤ Add to collection

German type embossed worm gear hose clamp

￥1.00
￥0.00
￥0.00
￥0.00
Weight：0.000KG
Description

high pressure auto silicone hose lined clamps



  Place of Origin  Zhejiang,China(Mianland)
  Brand Name  GTHOSE
  Standard or Nonstandard  Standard
  Material  Stainless Steel
  Structure  Derman Type Hose Clamp
  Usage  Pipe Clamp


2.jpgClamp German type
StandardDIN 3017
Material

  1. W4/304: All parts SS304

  2. W4/201:  All parts SS201

  3. W1:  All zinc plated carbon steel

Adjust Range140mm to 160mm
Band With9mm
Band Thickness0.6mm
Screw Head7mm Max
Screw Length26mm Max

Related Catalog for Reference

German Type Embossed Worm Gear Hose Clamp DIN3017 Standard

Material Grade Choice1. W4/304:  All parts SS304
2.  W4/201:  All parts SS201
3. W1:  All zinc plated carbon steel
Band Width9mm
Band thickness0.6mm
Band Slot TypeSlot Embossed
Screw Head7mm Max
Screw Length26mm Max
StandardDIN3017



Clamping Size Rangepcs/bagpcs/cartoncarton size
8-12200100028*24.5*17.5
10-16200100028*24.5*17.5
12-20200100028*24.5*17.5
12-2220080028*24.5*17.5
16-25200100037*28*21
16-27200100037*28*21
20-3220080037*28*21
25-4020080037*28*21
30-4510080037*28*21
32-5010080038.5*38*21
35-5010080038.5*38*21
40-6010080058*38*19
50-7010080058*38*19
60-8010070058*38*19
70-9010070058*38*19
80-1005060058*38*19
90-1105060058*38*19
100-1205050058*38*19
110-1305050058*38*19
120-1405045058*38*19
130-1505040058*38*19
140-1605030058*38*19
