Silicone Hose Working Pressure
Source: | Author:Sara | Published time: 2021-06-25 | 176 Views | Share:

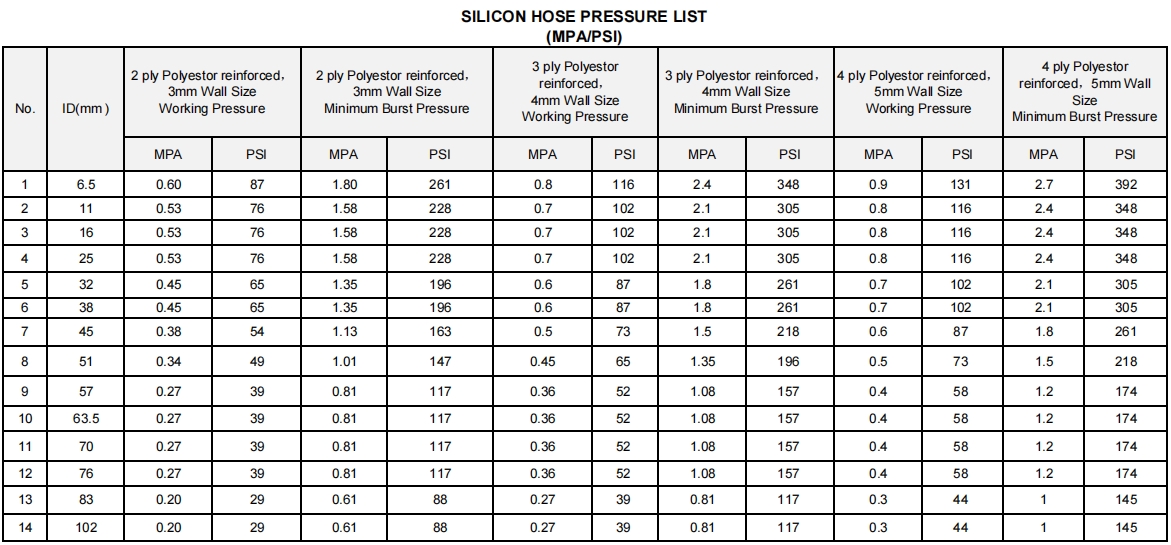

Silicone hose usually used for performance, working pressure and burst pressure is an important parameter. Our product is 20% higher on working pressure than most of other manufactures. The reinforced fabric is one of the reason.

Textile fabrics used as reinforcement in hose construction provide the strength to achieve the desired resistance to internal pressure or to provide resistance to collapse, or both.

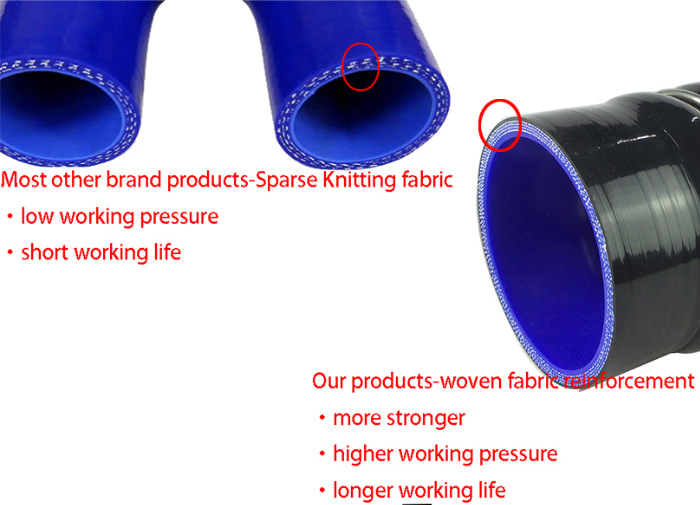

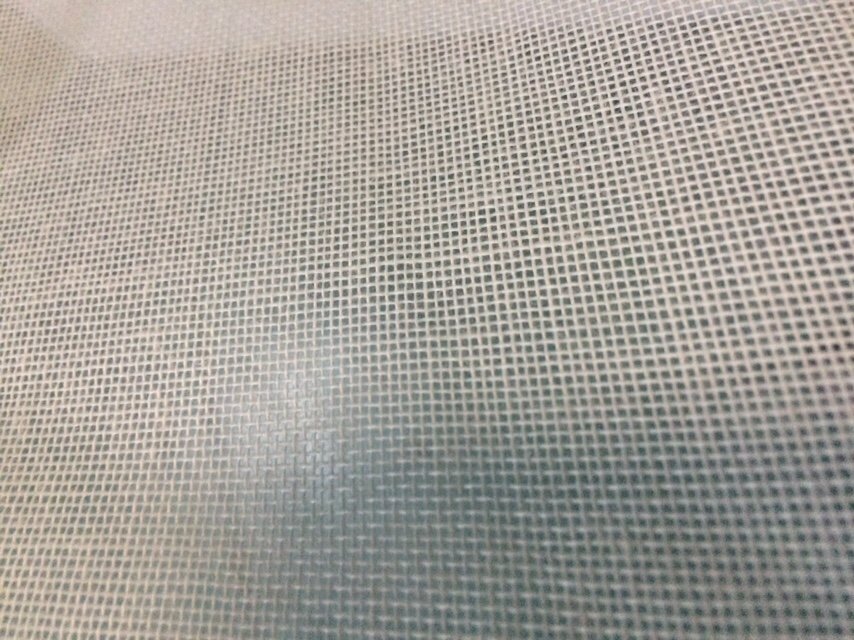

our hose fabric is plain woven from warp yarns, which run lengthwise, and filling yarns, which run cross-wise. the warp and filling yarns cross each other alternately at 45 degrees angle, to ensure it have the best reinforcement property suitable for silicone hose, which not only provide good adhesion between silicone rubber sheets, but also control be flexibility (elasticity) to provide better resistance to internal pressure and collapse due to lower expansion of hoses.

Lower expansion = Better resistance to internal pressure and collapse expansion of hoses.

Any question, feel free to contact sara@gthose.com.
